Logging

The spaces using or built from the knot base images use rsyslog to collect logs from the services running within the space. The logs are then sent to the knot agent which forwards them to the knot server for storage and viewing.

Viewing Logs

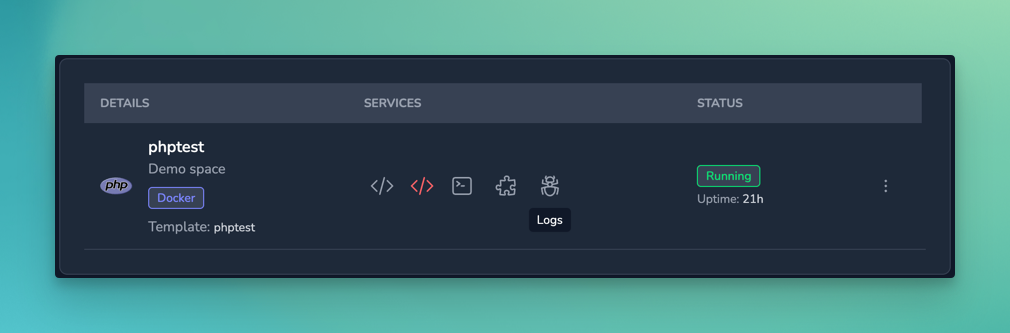

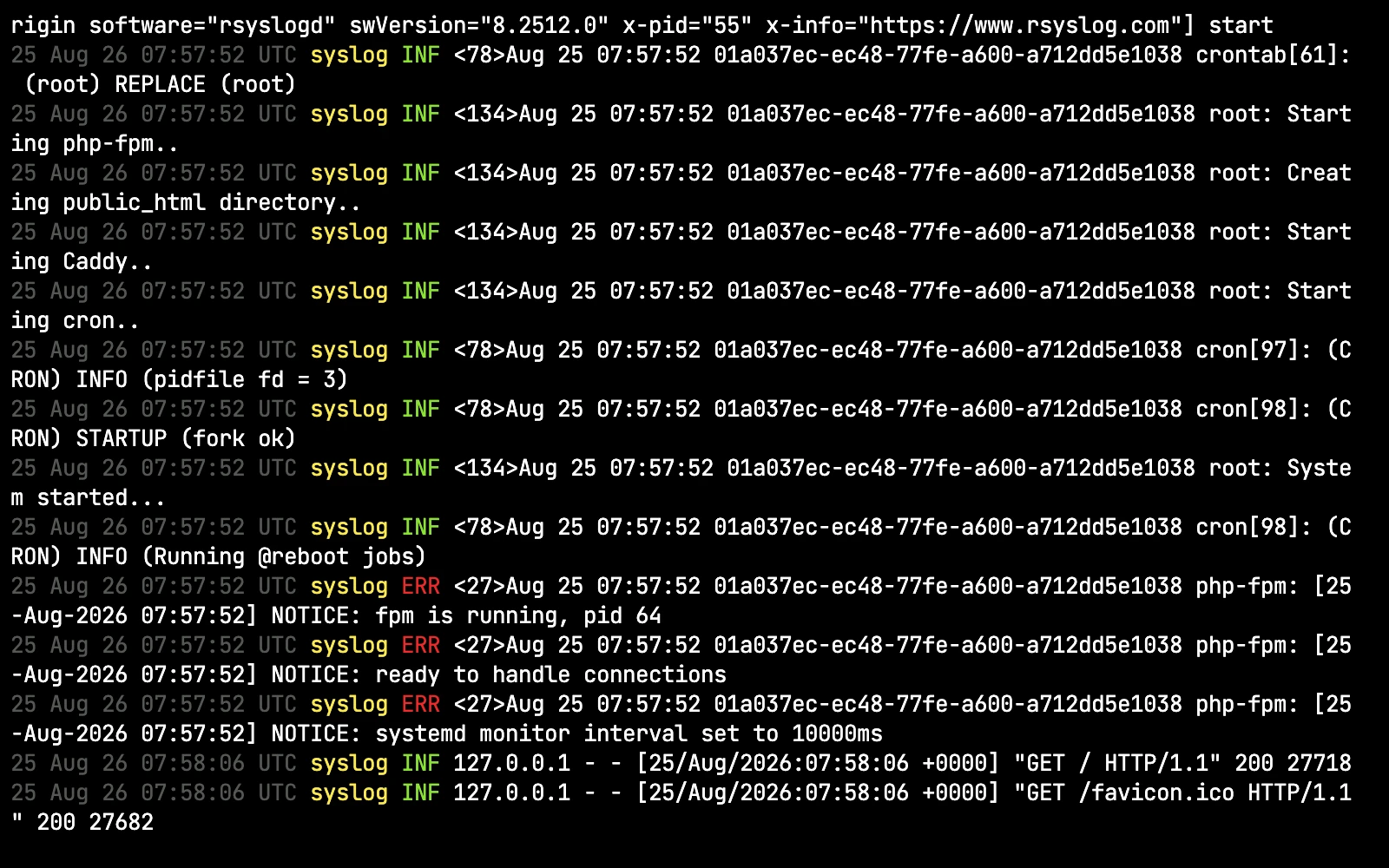

Once a space is running, the logs can be viewed by clicking the Logs button on the Spaces page against the space whose logs are to be viewed.

Sending Logs

The knot agent supports a syslog interface along with a HTTP API. The HTTP API interface supports a native JSON or msgpack format, a Greylog GELF format endpoint and a Loki compatible endpoint.

The default port for the HTTP API is 12201 and the syslog interface is 514.

Native JSON or Msgpack

The native JSON or msgpack format is a simple JSON object with the following fields:

{
  "service": "my-app",
  "level": "info",
  "message": "Logging a test message"
}

• service - The name of the service sending the log message.
• level - The log level of the message, one of debug, info, error.
• message - The log message to be sent.

The message can be sent to the agent using the following curl command:

curl -X POST http://localhost:12201/logs \
  -H "Content-Type: application/json" \
  -d '{"service":"my-app", "level":"info", "message":"Logging a test message"}'

Graylog GELF

The Graylog GELF format is a JSON object with the following fields:

{
  "version": "1.1",
  "host": "example.org",
  "short_message": "A short message",
  "full_message": "Backtrace here\n\nmore stuff",
  "timestamp": 1291899928.412,
  "level": 3,
}

The message can be sent to the agent using the following curl command:

curl -X POST http://localhost:12201/gelf \
  -H "Content-Type: application/json" \
  -d '{"version":"1.1", "host":"example.org", "short_message":"A short message", "full_message":"Backtrace here\n\nmore stuff", "timestamp":1291899928.412, "level":3}'

Loki

The Loki compatible endpoint can accept logs in the Loki format, the message is a JSON object with the following fields:

{
  "streams": [
    {
      "stream": {
        "label": "my-app",
      },
      "values": [
        [ 1620000000, "Logging a test message" ]
      ]
    }
  ]
}

The message can be sent to the agent using the following curl command:

curl -X POST http://localhost:12201/loki/api/v1/push \
  -H "Content-Type: application/json" \
  -d '{"streams": [{"stream": {"label": "my-app"}, "values": [[ "1620000000", "Logging a test message" ]]}]}'
