Custom Variables

Custom variables are defined within templates and can have values assigned to them when creating or editing a space. These variables allow for dynamic customization and are accessed using the .custom prefix. For example, if the variable is named test, it would be used in a template as ${{ .custom.test }}.

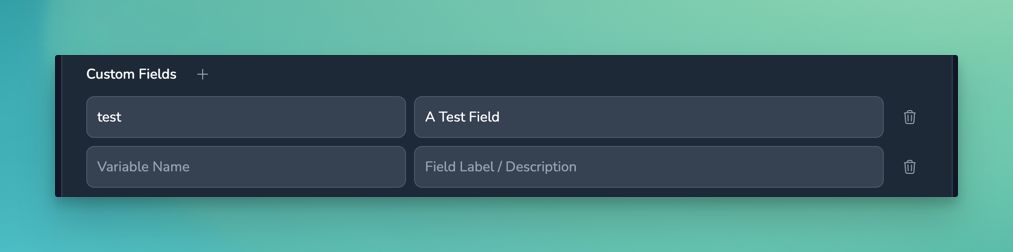

Adding Fields to a Template

Before custom variables can be created and used, fields must be added to the template:

Field Configuration Options

  • Variable Name: The name of the variable.

  • Field Label/Description: A description for the field, displayed when adding or editing a space.

  • Field settings (the wrench icon on each row):

    • Field Type: Text (default), Masked, Number, Bool, Select, Autocomplete, or Text Area. Values are always stored as strings.
    • Options: for Select and Autocomplete fields, a manual list or a plugin field handler; the value must be one of the options.
    • Field Required: the space can’t be created or saved with the field blank.
    • Always Show When Creating a Space: shows an optional field on the create form with the required ones, instead of behind the Show N more field(s) toggle.
    • Default Value: pre-fills the field when a space is created, and is used when an API or CLI request leaves the field out.

See Managing Templates for the details of each setting.

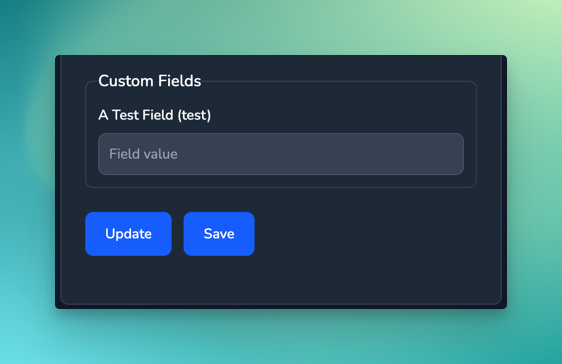

Setting a Custom Variable

When creating or editing a space, the fields added to the template will be displayed, allowing you to enter values for each custom variable. These values will be saved and applied to the space, enabling per-space customization based on the template’s configuration.

End-to-End Example

1. Add the field to the template — in the template form’s Custom Fields section, add a field with variable name branch and a label such as Git branch to checkout.

2. Use the variable in the container spec:

environment:
  - "CHECKOUT_BRANCH=${{ .custom.branch }}"

3. Set the value when creating the space — the field appears in the create-space form with your label; enter for example main.

The space’s container now starts with CHECKOUT_BRANCH=main. Editing the space changes the stored value, but the space isn’t restarted: a running space keeps the old value until it is next started, so restart it to apply the change.
