Template Spec Wizard

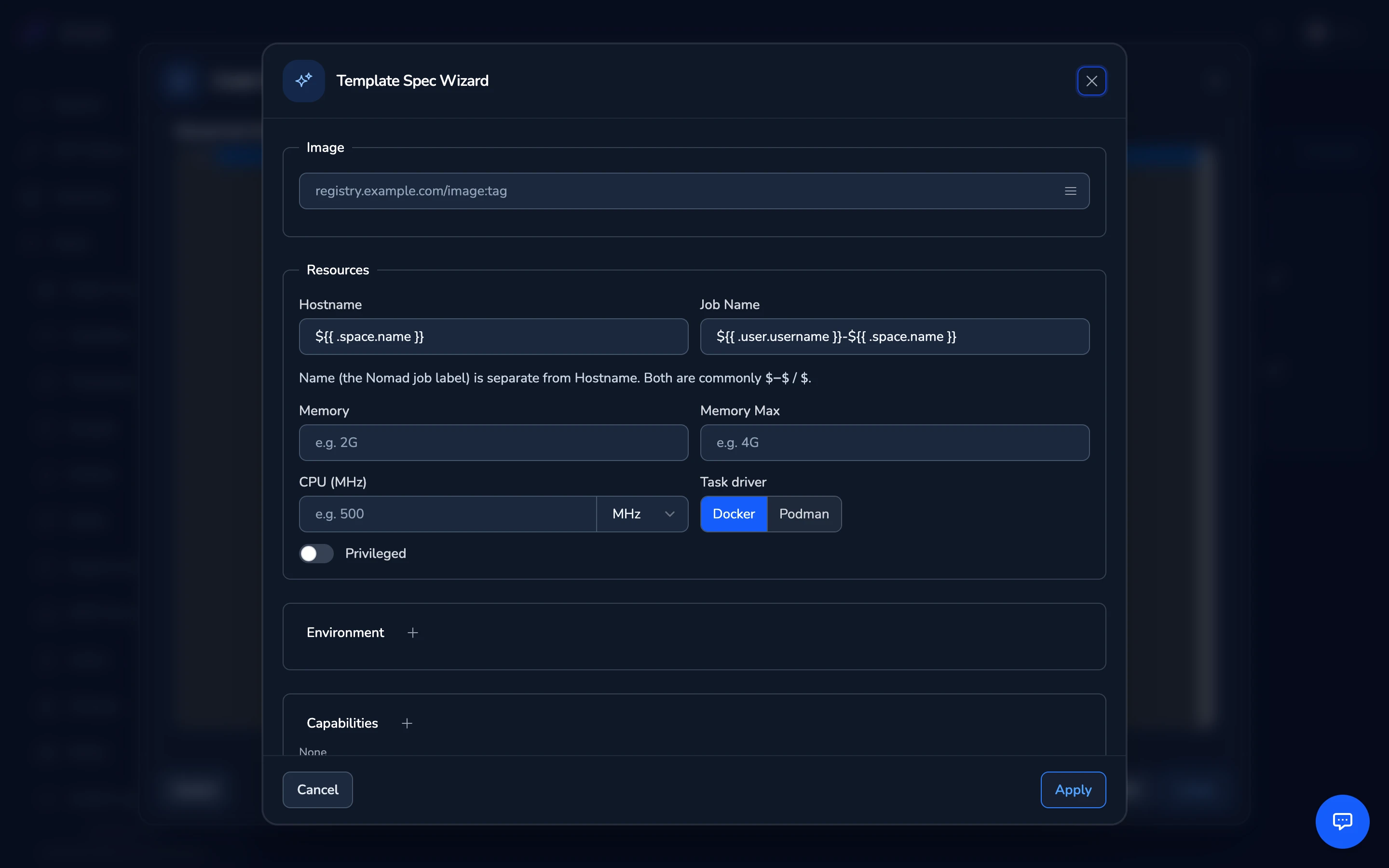

The template spec wizard is a UI-driven builder for template specs (Nomad HCL or local container YAML). Instead of writing HCL/YAML by hand, administrators pick a base image from a catalog, set resources, mounts, env vars, and ports — knot writes the spec for them.
The wizard is available from the template create/edit form via the wand icon next to the Nomad Job (HCL) / Container Specification (YAML) field. It only enables for specs it can safely round-trip (single-task Nomad jobs with a docker driver, or any well-formed container spec). Multi-task Nomad jobs and unparseable specs disable the wizard with an explanatory message.
The Name field in the wizard (labelled Job Name for Nomad, Container Name for containers) is separate from Hostname. Name maps to the Nomad job’s label (job "<name>" { ... }) or container_name; Hostname maps to the hostname field. Templates commonly set both to the same convention, e.g. ${{ .user.username }}-${{ .space.name }} for Name and ${{ .space.name }} for Hostname — but they’re independent fields.
The wizard doesn’t replace hand-editing — it patches only the fields it controls. Anything outside that surface (Nomad constraints, meta stanzas, comments in non-patched ranges) is preserved byte-for-byte on Apply.
Base Image Registry
The wizard’s image picker shows a curated catalog of base images (Ubuntu, PHP, MariaDB, Valkey, etc.). See the base images reference for the full grid of supplied images and their versions. Each catalog entry references the registry via the ${{ .server.base_image_registry }} system variable, which resolves at deploy time to the configured value.
Default: docker.io/paularlott
[server.base_image]
# Prefix prepended to relative image references in specs and the bundled
# base image manifest. Exposed to templates as ${{ .server.base_image_registry }}.
registry_url = "docker.io/paularlott"
manifest = "/etc/knot/base-images.toml"
# Optional: when both are set, the wizard injects an auth block into specs
# when the user picks a base image from the catalog. Exposed as
# ${{ .server.base_image_registry_user }} and ${{ .server.base_image_registry_password }}.
registry_user = ""
registry_password = ""Common overrides:
| Registry | Value |
|---|---|
| Docker Hub (upstream) | docker.io/paularlott (default) |
| Internal mirror | hub.example.com/library |
| GHCR | ghcr.io/yourorg |
| Self-hosted Harbor | harbor.example.com/knot |
Absolute image references in specs (e.g. ghcr.io/foo/bar:1) bypass the prefix entirely.
Base Image Manifest
The catalog itself comes from a TOML manifest. By default knot uses a manifest compiled into the binary (covering the knot-base-images catalog). To replace it — for example to add private images, use different icons, or restrict the picker to a curated subset — point at an external file:
[server.base_image]
registry_url = "docker.io/paularlott"
manifest = "/etc/knot/base-images.toml"Manifest format
version = 1
description = "My catalog"
[[image]]
name = "ubuntu-26.04"
display_name = "Ubuntu 26.04"
description = "Base Ubuntu 26.04 image with dev tools."
image = "${{ .server.base_image_registry }}/knot-ubuntu:26.04"
icon = "/icons/ubuntu-linux-alt.svg"
category = "base"
default_memory = "2G"
default_cpus = "1"
recommended = true
# Optional: mount points the image expects to be persistent. The wizard
# pre-fills one storage row per entry when the image is picked.
[[image.volume]]
name = "${{ .space.id }}-home"
path = "/home"
description = "Persistent home directory."
[[image]]
name = "custom-app"
display_name = "Internal App"
description = "Pre-built image of our internal app."
image = "registry.internal/app:latest" # absolute, no var
icon = "https://internal.example.com/app-icon.svg"
category = "internal"| Field | Required | Description |
|---|---|---|
version |
yes | Manifest schema version (currently 1). Bumped only on structural changes. |
manifest_version |
no* | Catalog revision in yyyymmddbb form (date + same-day build counter). Used to decide whether a fetched manifest is newer than the bundled one — omit only for custom file-based catalogs that are never fetched. |
description |
no | Free-form description of the catalog. |
name |
yes | Stable identifier used as the picker key. |
display_name |
yes | Shown in the picker. |
description |
yes | One-line description shown under the name. |
image |
yes | Image reference; may use ${{ .server.base_image_registry }} or be absolute. |
icon |
no | Icon URL. The bundled catalog uses knot-served paths like /icons/ubuntu-linux-alt.svg (see internal/service/icons.go for the full set). Absolute URLs (https://...) also work — useful for private icons in custom manifests. |
category |
no | Free-form label rendered as a badge (e.g. base, datastore). Defaults to general. |
default_memory |
no | Pre-filled in the wizard when the user picks this image (only if the field is empty). |
default_cpus |
no | Nomad: reserved MHz (cpu = N). Containers: CPU shares (--cpu-shares, default 1024). Pre-filled only when the CPUs field is empty. |
default_cores |
no | Nomad: whole CPU cores to reserve (cores = N). Containers: number of CPUs (--cpus). Pre-filled only when the CPUs field is empty. |
recommended |
no | Renders a “recommended” badge in the picker. |
tags |
no | List of strings, reserved for future filtering. |
default_env |
no | List of KEY=value env vars pre-filled when picking this image (only if the key doesn’t already exist). e.g. ["KNOT_VNC_HTTP_PORT=5680"] for desktop images. |
default_port |
no | Array of template-level ports pre-filled when picking this image (if the port doesn’t already exist). Each entry has name, port, and protocol. e.g. [[image.default_port]] with name = "Web", port = 80, protocol = "http" for PHP images. These are template port metadata used for routing, not the Nomad/Docker network ports in the spec. |
volume |
no | Array of mount points the image expects to be persistent ([[image.volume]]). Each entry has a path (the in-container mount point, e.g. /home, /data, /var/lib/mysql), a name (the suggested managed-volume name — include ${{ .space.id }} so the resolved name is unique per space and won’t clash with other spaces’ volumes on the same host; the wizard falls back to the last path segment when omitted), an optional kind (bind, volume, or path; defaults to volume — the backing kind the wizard pre-fills, which the user can still change), and an optional description. The wizard pre-fills one storage row per entry when the image is picked. |
Building a manifest from the knot-base-images repo
The default manifest’s metadata mirrors the OCI labels in docker-bake.hcl. If you maintain a fork that adds images, copy the corresponding org.opencontainers.image.* labels into [[image]] entries and reload with server.base_image.manifest pointing at your file. The bundled manifest is regenerated on each knot release.
Base image updates
The catalog compiled into the binary is a snapshot taken at release time. knot can fetch a published catalog from https://getknot.dev/base-images.toml (the default) or a URL of your choosing. Updates are gated by a single master flag — off by default — that enables both the startup fetch and the manual refresh command:
[server.base_image]
update_enabled = true # master gate; off by default
update_url = "https://your-mirror/base-images.toml" # optional; defaults to getknot.devWhen the gate is off, no remote fetch ever happens (not on startup, not via the admin command) — the bundled or file catalog is used as-is. When it’s on, a fetch happens once on startup and on demand via knot admin refresh-base-images, subject to the manifest/url rules below. There is no periodic loop — the catalog only changes on restart or an explicit refresh.
Whether a fetch happens when the gate is on depends on whether a manifest file is configured (M) and an explicit update_url is set (U):
| Configured file (M) | Fetches? | Source |
|---|---|---|
| No file | yes | update_url, or the default URL if none is set |
| File set | only if an explicit update_url is set |
update_url |
So with no file you always get a fetch (the default URL is fine); with a file, the file is used unless you’ve also set an explicit update_url.
In every case where a fetch happens, the fetched manifest overlays the baseline only when its manifest_version (yyyymmddbb) is strictly newer — so the baseline is never silently downgraded, and bumping a file’s version keeps it ahead of the remote. If the fetch fails, the server falls back to the baseline and logs a warning.
While a configured file is the active catalog it is read from disk on every request, so editing it takes effect immediately (no restart). Every node (full members and leaves) fetches independently from the same URL, so the fleet converges on identical content with no cluster coordination.
Manual refresh (cluster-wide)
To update a running fleet without restarting, run the admin command — it fans the refresh out to every server in the cluster and reports each one:
knot admin refresh-base-images --server https://knot.example.com --token <token>Each server applies the same fetch rule as startup (gate on; file requires an explicit update_url). A server whose gate is off, or which uses a file without a update_url, reports a conflict and keeps its current catalog. Pass --local-only to refresh just the connected server. Leaf nodes aren’t gossip members and won’t be reached by the fan-out — refresh them individually (they also fetch on their own startup).
Or via the API — POST /api/base-images/refresh (requires the manage-templates permission) refreshes a single server.
CLI flags
All options are available as CLI flags or environment variables:
| Flag | Env var | Config path | Default |
|---|---|---|---|
--base-image-registry |
KNOT_BASE_IMAGE_REGISTRY |
server.base_image.registry_url |
docker.io/paularlott |
--base-images-manifest |
KNOT_BASE_IMAGES_MANIFEST |
server.base_image.manifest |
(bundled) |
--base-images-update-enabled |
KNOT_BASE_IMAGES_UPDATE_ENABLED |
server.base_image.update_enabled |
false |
--base-images-update-url |
KNOT_BASE_IMAGES_UPDATE_URL |
server.base_image.update_url |
https://getknot.dev/base-images.toml (only used when no manifest file is set) |
--base-image-registry-user |
KNOT_BASE_IMAGE_REGISTRY_USER |
server.base_image.registry_user |
(none) |
--base-image-registry-password |
KNOT_BASE_IMAGE_REGISTRY_PASSWORD |
server.base_image.registry_password |
(none) |
When both registry_user and registry_password are set, the wizard injects an auth block into the spec when the user picks a base image from the catalog — using ${{ .server.base_image_registry_user }} and ${{ .server.base_image_registry_password }} so credentials resolve at deploy time. If the spec already has an auth block, it’s left untouched.
Storage
The wizard’s Storage section replaces the previous separate “Volumes” list and “Volume Definition” text area. Each storage row declares:
| Kind | What it does |
|---|---|
| Bind | Mounts an existing host path (or the name of a volume created outside the wizard) directly into the container. No Volume Definition entry is created. |
| Volume | A managed named volume that knot creates with the space and destroys when the space is deleted. For containers this is a volumes: entry with an optional size; for Nomad it’s a full CSI or host volume with plugin_id, capacity, capabilities, secrets and parameters. The wizard creates both the Volume Definition entry AND the mount in the job spec. |
| Path | A managed directory knot creates before the job starts (and removes with the space). Appears in the Volume Definition paths: list. |
Every kind carries a Container Path (where it mounts inside the container) and a Read-Only toggle.
For Nomad Volume entries the wizard exposes a type dropdown (host / csi: single / csi: multi) that controls the volume type and access mode:
| Type | HCL emitted | Volume Definition |
|---|---|---|
| host | type = "host", no access_mode/attachment_mode |
host volume (plugin defaults to mkdir) |
| csi: single | type = "csi", access_mode = "single-node-writer" |
CSI volume with default capabilities |
| csi: multi | type = "csi", access_mode = "multi-node-multi-writer" |
CSI volume with multi-node capabilities |
attachment_mode is always file-system and is injected automatically — it’s not editable in the wizard. Additional CSI fields (plugin_id, capacity_min/max, secrets, parameters, mount options) are available via the gear icon on each volume row; access_mode and attachment_mode are hidden from that panel since they’re managed by the dropdown.
Wizardability and Advanced mode
The spec wizard can display any spec it can parse, but not every spec is fully representable — some contain constructs outside the wizard’s field set (Nomad template {}, constraint {}, artifact {} blocks; container YAML fields like shell). These are never lost on Apply (the patcher preserves them), but they’re invisible in wizard mode.
The parse response includes fully_representable (boolean) and advanced_reason (listing what was detected). The template form uses these to determine whether to default to Advanced (raw editor) mode or allow wizard mode. When fully_representable is false, the Wizard button still works — but the UI signals that the spec has content the wizard can’t show, and defaults to the raw editors.
Capabilities granted to the container (cap_add) are edited with a searchable picker: click + next to Capabilities, then search by capability name (net_admin) or by what it does (“raw sockets”, “clock”). Selected capabilities appear as pills; the x on a pill removes it. Capabilities the picker marks common are listed first.
The catalog covers the capabilities dev spaces usually need rather than the full kernel list. Anything missing can still be typed into the search box and added with Enter, and hand-written capabilities already in a spec are kept as-is even when they aren’t in the catalog.
Dropping capabilities (cap_drop) is rare enough that the wizard doesn’t offer a control for it — edit that in the spec directly. Any cap_drop already in the spec is read by the wizard and written back unchanged on Apply.
Names are stored canonically (CAP_NET_ADMIN) and written in the form each runtime expects:
| Platform | Emitted as |
|---|---|
| Docker / Podman | cap_add: [CAP_NET_ADMIN] |
| Nomad | cap_add = ["net_admin"], the form the docker task driver documents. If the job already uses the CAP_-prefixed form, that style is kept. |
The picker is available for every platform the wizard supports. Bear in mind that some runtimes ignore capabilities, Apple Containers, for example, exactly as they do when the field is written by hand.
Nomad clients restrict which capabilities a job may request via the docker plugin’s allow_caps setting. A capability the wizard writes is only granted if the client allows it.
How the wizard modifies specs
- Container specs (Docker/Podman/Apple): the YAML is patched in place. Comments on fields the wizard doesn’t rewrite survive, as do fields outside the wizard’s schema. Comments inside a list the wizard replaces (ports, volumes, environment, capabilities) are lost, because the whole list is re-emitted.
- Nomad specs: the wizard’s fields are patched into the existing HCL via constrained text surgery on the first task block. Comments, heredoc templates, and any HCL outside wizard-controlled blocks (constraints, services, meta) survive untouched. If the original HCL is empty, a complete default job is emitted using
${{ .space.name }}/${{ .user.username }}placeholders, withdatacenterspre-filled from the${{ .nomad.dc }}system variable (which defaults to theNOMAD_DCenvironment variable, orserver.nomad.dcwhen set). - The wizard never invents values it can’t see: a
networkblock with nomode, or a spec with noprivilegedflag, stays that way after Apply.
When the wizard refuses
The wand icon disables itself rather than risk rewriting a spec it doesn’t fully understand:
| Situation | Why |
|---|---|
| Multi-task or multi-group Nomad job | The wizard models a single task. |
Nomad task driver other than docker |
Config layout differs per driver. |
| Unparseable HCL or YAML | Nothing reliable to read or patch. |
| Nomad not configured on the server | HCL parsing needs a Nomad endpoint. |
Container YAML with multiple documents (---) |
Only the first document could be patched. |
Container YAML using anchors or aliases (&base, *base, <<:) |
Re-emitting expands them and changes the file’s meaning. |
Nomad group volume where the label differs from source |
The wizard can’t round-trip the label→source mapping. |
Knot template directives like ${{ if .X }} / ${{ end }} that appear as standalone lines between HCL blocks are handled automatically — they’re commented out before the HCL reaches Nomad’s parser, so the wizard can parse the surrounding job. If commenting out the directives produces broken HCL (e.g. an ${{ else }} that makes both branches visible with duplicate fields), the parse fails and the wizard shows the error.
In each case the wizard shows the reason and you edit the spec directly.
Icon flow
When the user picks a base image from the picker:
- The image string is written to the visible image field.
- The image’s manifest icon URL is captured into a hidden wizard field.
- On Apply, if the hidden field is set, it’s written to the template’s
icon_url; if the user typed an image manually (no picker), the template’sicon_urlis left untouched, so any custom icon set via the existing icon control is preserved.
On every wizard open, the hidden icon field is cleared — so updating an image via the picker always updates the template icon, but editing other wizard fields without touching the image leaves the icon alone.
